New version of Rphylip with Rseqboot & demo

I just submitted a new version (Rphylip 0.1-23) of the Rphylip package ('an R interface for PHYLIP') to CRAN. This version fixes a couple of bugs in the first CRAN version - including taxon name length limits in Rconsense and Rtreedist (which are present in the corresponding PHYLIP programs CONSENSE and TREEDIST, but can easily be circumvented when calling PHYLIP from within R). It also introduces the new function Rseqboot, which is an R interface two SEQBOOT. SEQBOOT implements a range of non-parametric bootstrapping, jacknife, and data permutation methods. Because it can take a variety of different character types as input, writing the interface was a bit of a pain in the butt - but it is finished to my satisfaction today.

Here's a demo of bootstrapping, distance matrix calculation from all bootstrap samples, and then consensus phylogeny estimation using the Rphylip package:

> require(Rphylip)
Loading required package: Rphylip
> packageVersion("Rphylip")
[1] ‘0.1.23’
> ## load primate dataset
> data(primates)
> ## basic bootstrapping
> X<-Rseqboot(primates,quiet=TRUE)
> ## compute distance matrices
> D<-lapply(X,Rdnadist,quiet=TRUE)
> ## compute all NJ trees
> ## note Rneighbor(...,quiet=TRUE) is
> ## not as quiet as it should be!
> trees<-lapply(D,Rneighbor,quiet=TRUE)
> ## reroot all trees using midpoint rooting
> require(phangorn)
Loading required package: phangorn
> trees<-lapply(trees,midpoint)
> class(trees)<-"multiPhylo"
> ## compute consensus tree
> tree<-Rconsense(trees,quiet=TRUE,rooted=TRUE)
> ## now plot the result with the bootstrap %s
> plot(tree,edge.width=2,no.margin=TRUE)
> ## find edges
> e<-sapply(2:tree$Nnode+length(tree$tip.label),
 function(x,y) which(y==x),y=tree$edge[,2])
> ## add bootstrap
> edgelabels(tree$node.label[2:tree$Nnode],e,pos=3,
 frame="none",bg="transparent")

Cool. Note that RETREE in PHYLIP does midpoint rooting, but this program cannot yet be called with Rphylip. The same general pipeline could be used with ML, MP, or other phylogeny inference methods in PHYLIP (although this would be slower, of course).

This version of Rphylip is already available from GitHub, but hopefully will also be accepted on CRAN soon.

Putting a barplot next to a plotted tree

Today a phytools user contacted me about creating a plot that looks like this. Well, I'm not going to try to duplicate this exactly, but here is a quick demo about how to put a bar plot next to a plotted tree with a continuous character map overlain:

## first let's simulate some tree & data to work with
tree<-pbtree(n=40)
x<-fastBM(tree)

Now let's create our plot:

## create a split plot
layout(matrix(c(1,2),1,2),c(0.7,0.3))
## plot our tree
xx<-contMap(tree,x,mar=c(4.1,1.1,1.1,0),res=200,plot=FALSE)
plot(xx,legend=FALSE,mar=c(4.1,1.1,1.1,0))
## click to add legend interactively
add.color.bar(1,cols=xx$cols,lims=xx$lims,title="")
## add bar plot
par(mar=c(4.1,0,1.1,1.1))
barplot(x[tree$tip.label],horiz=TRUE,width=1,space=0,
  ylim=c(1,length(tree$tip.label))-0.5,names="")

Obviously, the same approach could be used with an ordinary right-facing phylogram or a stochastic character mapped tree.

roundPhylogram now in phytools

A slightly more fully functional version of roundPhylogram (described on the blog earlier today) is now part of the phytools package. The function source code can be viewed here, and updated phytools package source can be downloaded from the phytools page.

Here's a demo, using the Caribbean anole tree:

> require(phytools)
Loading required package: phytools
Loading required package: ape
Loading required package: maps
Loading required package: rgl
> packageVersion("phytools")
[1] ‘0.3.97’
> data(anoletree)
> roundPhylogram(anoletree,ftype="i",fsize=0.7)

Plotting a right-facing round phylogram

Don't ask me why I'm working on this. Here's how to do it:

roundPhylogram<-function(tree){
  n<-length(tree$tip.label)
  # reorder cladewise to assign tip positions
  cw<-reorder(tree,"cladewise")
  y<-vector(length=n+cw$Nnode)
  y[cw$edge[cw$edge[,2]<=n,2]]<-1:n
  # reorder pruningwise for post-order traversal
  pw<-reorder(tree,"pruningwise")
  nn<-unique(pw$edge[,1])
  # compute vertical position of each edge
  for(i in 1:length(nn)){
    yy<-y[pw$edge[which(pw$edge[,1]==nn[i]),2]]
    y[nn[i]]<-mean(range(yy))
  }
  # compute start & end points of each edge
  X<-nodeHeights(cw)
  ## end preliminaries
  # open & size a new plot
  plot.new(); par(mar=rep(1.1,4))
  plot.window(xlim=c(0,1.05*max(X)),ylim=c(1,max(y)))
  # plot edges
  for(i in 1:nrow(X)){
    b<-y[cw$edge[i,1]]
    c<-X[i,1]
    d<-if(y[cw$edge[i,2]]>y[cw$edge[i,1]]) 1 else -1
    xx<-X[i,2]
    yy<-y[cw$edge[i,2]]
    a<-(xx-c)/(yy-b)^2
    curve(d*sqrt((x-c)/a)+b,from=X[i,1],to=X[i,2],add=TRUE,
      lwd=2)
  }
  # plot tip labels
  for(i in 1:n)
    text(X[which(cw$edge[,2]==i),2],y[i],tree$tip.label[i],
      pos=4,offset=0.3,font=2)
}

Now let's see how it works:

> library(phytools)
> source("roundPhylogram.R")
> tree<-pbtree(n=26,tip.label=LETTERS[26:1])
> roundPhylogram(tree)

Rphylip now on CRAN!

Rphylip, an R interface for J. Felsenstein's PHYLIP phylogeny methods program package, is now on CRAN.

Rphylip is a collaborative project with Scott Chamberlain at Simon Fraser University. Although I did most of the programming of Rphylip, Scott wrote some of the initial interface code that helped me to get started on the project, he has helped to debug the package, he has contributed some of the example datasets, and he is co-authoring the program note that we are presently preparing for journal submission.

Rphylip now contains interface functions for close to 90% of the programs of the PHYLIP package. In almost every case, all or nearly all of the functionality of the PHYLIP programs are transferred to the R user. The Rphylip functions, like PHYLIP itself, cover an enormous range of applications - from phylogeny inference, to distance matrix calculation, to phylogenetic comparative methods. In every case, we have done our best to preserve all the functionality of the PHYLIP programs while allowing them to be integrated seamlessly into an R workflow. Rphylip also contains a number of helper functions which both broaden the functionality of PHYLIP (albeit slightly), and allow it to be more easily used. For instance, the user does not necessarily need to supply the path to the PHYLIP executable. If a path is not supplied, then Rphylip will search common locations for the PHYLIP executables (such as in C:\Program Files\ on a Windows machine. Rphylip even includes a function (setupOSX) that automates the somewhat complicated procedure of installing PHYLIP to a Mac OS X computer.

Of course, before Rphylip can be used, PHYLIP must first be installed. Furthermore, any use of Rphylip in publication should automatically trigger a citation of PHYLIP (as well as relevant references for the particular method employed).

This release of Rphylip in advance of submitting our program note for publication should be considered highly beta. We welcome any feedback on the package or its use. At the moment of writing, only the package source and Mac OS binary are available. I expect that a Windows package binary should be posted soon.

Finally (oops!) I accidentally misentered the package name in the R package DESCRIPTION file which is responsible for the double ("Rphylip: Rphylip: .....") package header on CRAN. I'm aware of this & it will be fixed in future releases.

Function to quickly compute the height above the root of a pair of taxa

Today I received the following phytools user request:

I've been using your phytools package (and the findMRCA function with type="height" to find the height of a specific node in a phylogenetic tree. However, the computation time is rather long for my purpose and I was thinking about using fastMRCA. However, this outputs only the node number of the parental node. Is there a chance to get the coalescent time of this node (as with the type argument of findMRCA). Or do you have a general other suggestion to increase speed (I would really only need to calculate the time of coalescence of two tips of the tree).

Unfortunately, it doesn't matter which (findMRCA or fastMRCA) is used in this case because the bottleneck is nodeHeights, which is used to compute the height of the common ancestor above the root. Here's a quick demo to illustrate that:

> ## simulate a large tree
> tree<-pbtree(n=10000)
> ## using findMRCA
> system.time(h1<-findMRCA(tree,c("t1","t100"),
 type="height"))
   user  system elapsed
  27.67    0.00   27.90
> h1
[1] 2.148063
> ## using fastMRCA & nodeHeights
> system.time(h2<-nodeHeights(tree)[which(tree$edge[,1]==
 fastMRCA(tree,"t1","t100"))[1],1])
   user  system elapsed
  27.13    0.00   27.17
> h2
[1] 2.148063
> ## this is almost completely driven by nodeHeights
> system.time(H<-nodeHeights(tree))
   user  system elapsed
  26.74    0.00   26.77

However, we can take a different approach. What if we instead (1) found all the ancestors (back to the root) of each tip, (2) identified the intersection of these two sets, and (3) summed the parent branch length for each ancestral node above the root in the intersection? Here's a function that does this and it runs pretty fast!

fastHeight<-function(tree,sp1,sp2){
  ancs<-phytools:::getAncestors
  a1<-ancs(tree,which(tree$tip.label==sp1))
  a2<-ancs(tree,which(tree$tip.label==sp2))
  a12<-intersect(a1,a2)
  if(length(a12)>1){
    a12<-a12[2:length(a12)-1]
    h<-sapply(a12,function(i,tree)
      tree$edge.length[which(tree$edge[,2]==i)],tree=tree)
    return(sum(h))
  } else return(0)
}

In use with the same example as before:

> system.time(h3<-fastHeight(tree,"t1","t100"))
   user  system elapsed
   0.01    0.00    0.01
> h3
[1] 2.148063

I will probably put this in phytools.

New function cladelabels

I just added a new function cladelabels to the phytools package. This function is in some ways analogous to nodelabels, tiplabels, etc. in ape. It basically implements the method I gave here, while taking advantage of the trick described here.

The code for this function is here, and it is also in a new phytools version, which can be downloaded here.

Here's a demo:

## this is just code to get a "realistic" looking tree
tree<-pbtree(n=26,tip.label=
  paste(LETTERS,"._",sapply(round(runif(n=26,min=3,max=6)),
  function(x) paste(sample(letters,x),collapse="")),sep=""),
  scale=1)
tree$edge.length<-tree$edge.length+0.1*rchisq(n=
  length(tree$edge.length),df=10)/10
plotTree(tree) ## also can use plot.phylo

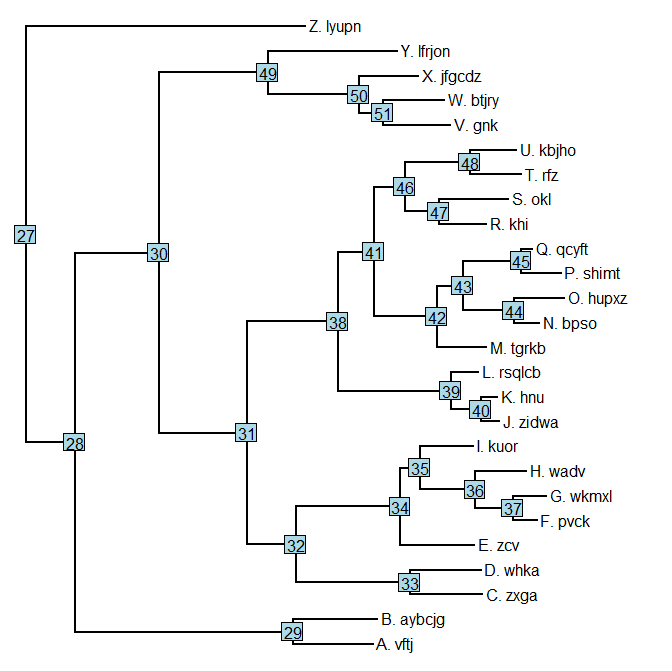

nodelabels()

Now let's label the three clades descended from nodes 46 & 33; and then also node 28 (which is inclusive of node 33:

## adjust xlim to make sure there is space
plotTree(tree,xlim=c(0,1.25*max(nodeHeights(tree))),
  ftype="i")
cladelabels(tree,node=49,"Clade A")
cladelabels(tree,node=34,"Clade B")
cladelabels(tree,node=31,"Clade C",offset=3))

Cool - this was more or less what we were going for. We can also do this without sending cladelabels the tree, although in this case we need to provide some guidance on the space that cladelabels should leave for tip labels - otherwise it will assume a fixed width of 8 characters.

plotTree(tree,xlim=c(0,1.25*max(nodeHeights(tree))),
  ftype="i")
## delete the tree! (we really don't need it)
rm(tree)
cladelabels(node=49,text="Clade A",offset=4.5)
cladelabels(node=34,text="Clade B",offset=6)
cladelabels(node=31,text="Clade C",offset=9)

It's also fairly obvious how this could be combined with findMRCA to label clades on the basis of the taxa in the clade, rather than their specific MRCA node number. For instance:

plotTree(tree,xlim=c(0,1.25*max(nodeHeights(tree))),
  ftype="i")
tips<-c("L._rsqlcb","J._zidwa","K._hnu","M._tgrkb",
  "N._bpso","O._hupxz","P._shimt","Q._qcyft",
  "R._khi","S._okl","T._rfz","U._kbjho")
cladelabels(tree,node=findMRCA(tree,tips),text="clade D",
  offset=2)

Finally, it's possible to send the function multiple node numbers & clade labels in one function call - although at present this does not permit us to use different offset values. So:

cladelabels(tree,node=49,"Clade A")
cladelabels(tree,node=34,"Clade B")
## is the same as:
cladelabels(tree,node=c(49,34),text=c("Clade A","Clade B"))

One caveat important to mention is that at present this works only for rightward facing phylograms (or cladograms, for tree=NULL). This is not theoretically difficult to extend to other plot types, it just requires more work.

Extracting a "phylo" object from the last plotted tree

I stumbled on this trick while working on something else. When plot.phylo in ape or plotTree or plotSimmap in phytools are used to plot a tree the environmental variable last_plot.phylo is created. This variable is used to by nodelabels, tiplabels, and other functions that are used to add elements to the plotted tree. This object contains mostly information about the plotted tree - coordinates of vertices, etc. Today I realized that (almost) the entire "phylo" object can be reconstructed from this variable.

Here's how that works:

> tree<-pbtree(n=26,tip.label=LETTERS)
> plotTree(tree)

> ## delete the tree from memory
> rm(tree)
> ## last plotted tree
> lastPP<-get("last_plot.phylo",envir=.PlotPhyloEnv)
> ## reconstruct the tree in memory
> tree<-list(edge=lastPP$edge,
  tip.label=1:lastPP$Ntip,
  Nnode=lastPP$Nnode)
> ## now get the edge lengths
> H<-matrix(lastPP$xx[tree$edge],nrow(tree$edge),2)
> tree$edge.length<-H[,2]-H[,1]
> class(tree)<-"phylo"
> plotTree(tree)

The only thing we've lost is the tip labels.

That's it on this.

Drawing a line on a plotted tree to identify members of a clade

This is in response to a user request to the effect of I would like to place a vertical bar next to all the tips descended for a node that I specify. How do I do this?. Here's my answer:

First, here's our original tree. (Simulated, but generated to look like a realistic empirical tree).

plotTree(tree)
nodelabels()

## ok, let's say our node of interest is node 43
tree<-reorder(tree)
## get the tips numbers & thus their vertical
## positions
tips<-getDescendants(tree,43)
tips<-tips[tips<=length(tree$tip.label)]
## we're going to use these later!
## they assume cex=1, but could be adjusted otherwise
sw<-max(strwidth(tree$tip.label[tips]))
sh<-max(strheight(tree$tip.label))
## max height of the tips in our clade
## + their labels
h<-max(sapply(tips,function(x,tree)
    nodeHeights(tree)[which(tree$edge[,2]==x),2],
    tree=tree))+1.1*sw
## vertical line
lines(c(h,h),range(tips)+c(-sh,sh))
## upper & lower horizontal lines to demarcate the
## clade; their specific length is arbitrary
lines(c(h-0.5*sw,h),
    c(range(tips)[1]-sh,range(tips)[1]-sh))
lines(c(h-0.5*sw,h),
    c(range(tips)[2]+sh,range(tips)[2]+sh))
## label for the clade
text(h+0.5*strwidth("W"),mean(range(tips)),
    "clade of interest name",srt=90,pos=1)

That's pretty much it. Of course, the user should adapt this code to their specific tree and visualization goals.

Phylogenetic comparative methods mini-course at Universidad de los Andes, Bogotá

Luke Harmon, Andrew Crawford, and I will be co-teaching a phylogeny methods in R workshop at the Universidad de los Andes, Bogotá, Colombia this summer from the 8th to the 11th of July. This course is funded by the NSF and co-sponsored by U. los Andes and the University of Massachusetts Boston (my home institution).

More information in English & Spanish below:

---

Intensive short course on phylogenetic comparative methods in R (descripción en español abajo)

We are pleased to announce a new graduate-level intensive short course on the use of R for phylogenetic comparative analysis. The course will be four days in length and will take place at the Universidad de los Andes, Bogotá, Colombia from the 8th to the 11th of July, 2014. This course is partially funded by the National Science Foundation, with additional support from the University of Massachusetts Boston and the Universidad de los Andes. There are a number of full stipends available to cover the cost of travel, room and board for qualified students and post-docs. Applicants are welcome from any country; however we expect that most admitted students will come from Colombia and the Andean region. Accepted students from further afield may be offered only partial funding for their travel expenses. Topics covered will include: an introduction to the R programming language, tree manipulation, independent contrasts and phylogenetic generalized least squares, ancestral state reconstruction, models of character evolution, diversification analysis, and community phylogenetic analysis. Course instructors will include Dr. Liam Revell (University of Massachusetts Boston), Dr. Luke Harmon (University of Idaho), and Dr. Andrew J. Crawford (Universidad de los Andes).

Instruction in the course will be primarily in English; however some of the instructors and TAs of the course are competent or fluent in Spanish and English. Discussion, exercises, and activities will be conducted in both languages.

To apply for the course, please submit your CV along with a short (maximum 1 page) description of your research interests, background, and reasons for taking the course. Admission is competitive, and preference will go towards students with background in phylogenetics and a compelling motivation for taking the course. Applications should be submitted by email to bogota.phylogenetics.course@gmail.com by May 1st, 2014. Applications may be written in English or Spanish; however all students must have a basic working knowledge of scientific English. Questions can be directed to liam.revell@umb.edu.

---

Curso posgrado de métodos comparativos filogenéticos en R

Nos complace anunciar un nuevo curso corto e intensivo a nivel de posgrado sobre el uso de R en investigaciones científicas que usan métodos comparativos filogenéticos. El curso tendrá una duración de cuatro días y se llevará a cabo en la Universidad de los Andes (Bogotá, Colombia) entre el 8 y el 11 de julio de 2014. Este curso está parcialmente financiado por la National Science Foundation de los Estados Unidos, con el apoyo adicional de la Universidad de Massachusetts Boston y la Universidad de los Andes. Hay varios estipendios completos disponibles para cubrir los costos de tiquetes y alojamiento para estudiantes e investigadores postdoctorales calificados. Estudiantes de cualquier país serán aceptados; sin embargo anticipamos que la mayoría de los estudiantes aceptados serán de Colombia y otros países andinos. Estudiantes provenientes de países más alejados tendrán la posibilidad de recibir solo apoyo parcial para costear los gastos del viaje. Los temas que serán discutidos en el curso incluyen: una introducción al idioma de programación de R, manipulación de los árboles filogenéticos, mínimos cuadrados generalizados en un contexto filogenético, reconstrucciones de los estados ancestrales, modelos de evolución, análisis de la diversificación en el contexto de una filogenia, y análisis filogenéticos de comunidades ecológicas. Los instructores del curso serán: Dr. Liam Revell (University of Massachusetts Boston), Dr. Luke Harmon (University of Idaho), y Dr. Andrew J. Crawford (Universidad de los Andes).

El curso será dictado principalmente en inglés; sin embargo algunos de los instructores y TA del curso hablan fluido el español. Las discusiones, los ejercicios, y las actividades del curso se harán en español e inglés.

Para aplicar al curso, deben enviar una copia de su CV con una corta (1 página) descripción de sus intereses científicos, experiencia, y razones por las cuales quieren tomar el curso. El proceso de admisión será competido, y se preferirán estudiantes con conocimientos en filogenética y una motivación persuasiva para hacer el curso. Las aplicaciones deben ser enviadas por email a bogota.phylogenetics.course@gmail.com antes del 1 mayo, 2014. Las aplicaciones pueden ser escritas en inglés o español; sin embargo todos los estudiantes deben tener un nivel básico de inglés científico. Preguntas pueden ser dirigidas a liam.revell@umb.edu.

New version of rateshift; new version of phytools submitted to CRAN

Some comments on earlier version of the function rateshift for identifying one or multiple shifts in the Brownian rate of evolution on the tree suggested that there were some difficulties in converging to the ML solution. Indeed, this is not too surprising. I have now posted a new version of rateshift that has more robust optimization. Here's a quick demo:

> require(phytools)
Loading required package: phytools
Loading required package: ape
Loading required package: maps
Loading required package: rgl
> packageVersion("phytools")
[1] ‘0.3.93’
> ## simulate tree & data
> tree<-pbtree(n=100,scale=1)
> tree<-make.era.map(tree,c(0,.5))
> x<-sim.rates(tree,c(10,1),internal=TRUE)
names absent from sig2: assuming same order as $mapped.edge
> ## here's a visual of our simulation
> phenogram(tree,x,ftype="off")

> ## peel off ancestral states
> x<-x[tree$tip.label]
> ## fit one-rate model:
> fit1<-rateshift(tree,x,nrates=1)
Optimization progress:
|..........|
Done.

> ## fit two-rate model:
> fit2<-rateshift(tree,x,nrates=2)
Optimization progress:
|..........|
Done.

> fit1
ML 1-rate model:
        s^2(1)  se(1)   k       logL
value   1.5419  0.2179  2       -89.379
This is a one-rate model.

R thinks it has found the ML solution.

> fit2
ML 2-rate model:
        s^2(1)  se(1)   s^2(2)  se(2)   k       logL
value   7.3925  4.0858  1.2412  0.1903  4       -85.911

Shift point(s) between regimes (height above root):
        1|2     se(1|2)
value   0.5274  0.01

R thinks it has found the ML solution.

In addition, I was recently informed that the package extrafonts has been removed from CRAN. phytools depends on extrafonts for the plotting functions xkcdTree and fancyTree. To address this dependency issue I have now removed xkcdTree from phytools (source code is still available from the phytools page) and modified fancyTree so that it no longer uses extrafonts. This new version has now been submitted to CRAN. It is already available on phytools.org.
